CareFusion ReVel Transport Ventilator

(0) No Reviews yet
SKU: RS120196

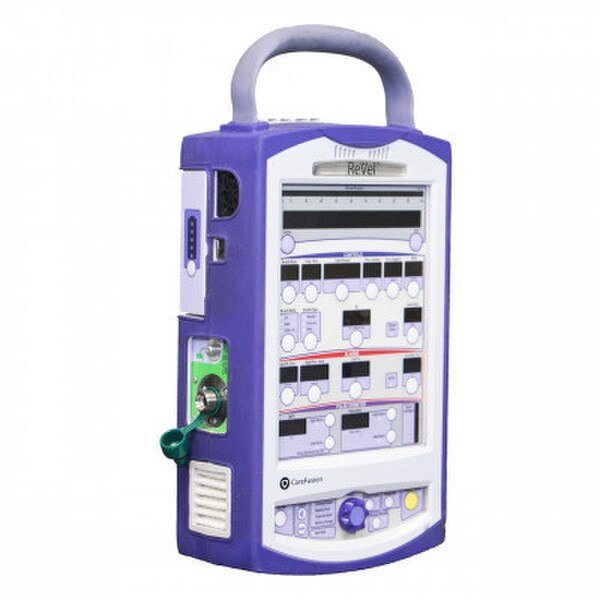

CareFusion ReVel Transport Ventilator


The CareFusion ReVel Ventilator provides emergency and transport ventilation for both pediatric and adult patients.  It is suitable for service in home-care, hospital and transport environments as a source of continuous or intermittent positive pressure ventilation support, delivering invasive or non-invasive therapy. It has automatic leak compensation of up to 30 lpm to meet the patient’s flow demand and comfort needs.


  • New
  • Lightweight design is ideal for EMS and critical care medical transportation
  • Weighing only 9 1/2 pounds, the ReVel ventilator moves easily with the patient
  • Small size and ergonomic design eases mounting in ground and air emergency transport vehicles
  • User interface is based on the LTV series platform, easing use and reducing training time
  • Hot-swappable, 4-hour battery that provides  uninterrupted power for extended transport capabilities
  • Supports continuous alternate power options from an optional DC automobile adapter, dual desktop battery charger or additional lithium-ion batteries
  • Meets civilian and military air and ground standards
  • Certified Airworthiness Release (AWR) for compliance with military transport aircraft
  • One (1) Year Warranty

Ventilation Features

  • Patented ActivCore™ gas delivery system allows a single ventilator to deliver true, high-end critical care ventilation
  • Blower delivers 180LPM of flow at 100cmH2O
  • Automatic leak compensation up to 30 LPM helps meet patient flow demand and comfort needs
  • Integrated SBT expedites liberation from invasive ventilation
  • Provides continuous ventilation without requiring manual ventilation or circuit disconnection
  • Integrated Pulse Oximeter—allowing SpO2 and pulse rate monitoring during transport or in lieu of central monitoring

Palmtop Ventilator Docking Station

Supporting the ReVel ventilator on either the roll stand or wall mount, the PalmTop Ventilator docking station can be strategically utilized for power and to start real-time data transfer to networked medical records. The VOXP communication protocol links the ReVel ventilator to monitoring and HIS systems. Patient trend data can be downloaded to a computer for data analysis through the PalmTop Ventilator Smart Card.


  • Weight: 9.5 lbs
  • Dimensions: 11″ H x 7″ W x 3.3″ D
  • Battery type: 4-hour internal Lithium ion
  • Breath Types: Volume Control, pressure control, pressure regulated volume control (PRVC), pressure regulated volume support (PRVS), pressure support (PS), spontaneous
  • Breath Modes: Assist Control, Synchronized Intermittent Mandatory, Ventilation(SIMV), Continuous Positive Airway Pressure (CPAP) plus PV, Noninvasive Positive Pressure
  • Nebulization: Provides a flow of 6 LPM ± 10% O2 to drive a nebulizer
  • Spontaneous Breathing Trial (SBT): During the SBT procedure, delivers ventilation in CPAP + PS mode with the selected SBT control settings in Extended Features: calculates f/Vt
