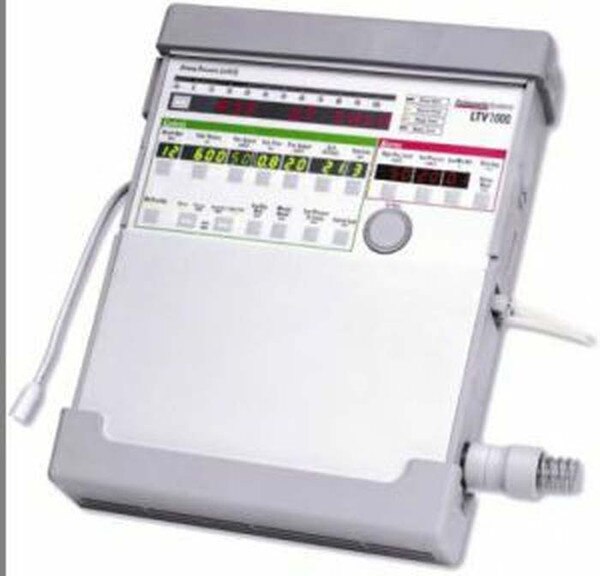

Carefusion LTV 1000 Transport Ventilator

The Carefusion LTV 1000 Transport Ventilator is a compact, portable advanced ventilator for patients who weigh at least 5 kg. It features AutoPEEP and a comprehensive alarm package.  An intuitive interface makes the LTV 1000 easy to understand and operate. The unit features extensive patient monitoring capabilities and a comprehensive alarms package for optimum patient care.

The large, color coded displays easily convey data to the clinician.  Alternatively, the LTV 1000 is capable of using the LTM II Graphics monitor for full-color, user-selectable ventilator waveform displays and diagnostics.

Adults or Pediatrics
The LTV 1000 allows ventilation to be tailored to each individual patient’s needs with available pressure control, pressure support, volume control, adjustable flow triggering, NPPV and apnea back-up mode.


  • Expertly Reconditioned
  • Lightweight, compact design is ideal for home care, EMS and medical transportation
  • Internal piston-driven compressor in the LTV 1000 ventilator eliminates the need for a high-pressure air source
  • Comprehensive alarm options
  • Internal oxygen blending for FiO2 control with high or low pressure oxygen sources
  • Internal battery and AC adapter
  • One (1) Year Warranty

Ventilation Features

  • Ventilation Modes: NPPV (Non-Invasive Positive Pressure Ventilation), SIMV, CPAP, Apnea back-up ventilation
  • Pressure control
  • Volume control
  • Pressure support
  • Flow-Triggering
  • Inspiratory & Expiratory hold
  • Leak Compensation
  • integral 02 blender
  • 02 flush
  • 02 cylinder duration
  • High & Low Pressure 02 Inlet


  • Weight: 13.4 lbs
  • Dimensions: 12″ H x 10″ W x 3″ D
  • Power Cord: Biomed replaceable 2.75 m (9 ft)
  • Includes AC Adapter


Power Indicators

  • External power: Green(Full Power), Amber(Low Power)
  • Charge status: Flashing Amber(Pretest), Green(Charge Complete), Amber(Charging), Red(Charger or Battery Fault)
  • Battery level: Green(Acceptable), Amber(Low), Red(Critically Low)

Monitors And Indications

Peak inspiratory pressure:0 to 120 cmH2O
Mean airway pressure:0 to 99 cmH2O
PEEP:0 to 99 cmH2O
Total breath rate:0 to 250 bpm
Airway pressure display:-10 to 108 cmH2O
Inhale/Exhale ratio:99:1 to 1:99
Calculated peak flow:10 to 100 lpm
Patient effort:Green LED


  • Disconnect/sense line
  • Low and lost external power
  • Low and empty internal battery
  • Ventilator inoperative Red LED, audible alarm
Apnea interval10 to 60 seconds
High pressure limit5 to 100 cmH2O
Low peak pressure Off1 to 60 cmH2O
Alarm volume60 to 80 dBA at 1 meter
Alarm silence/reset60 seconds
