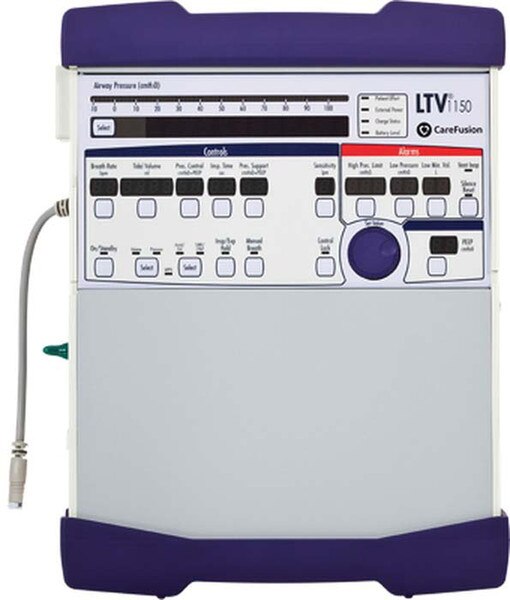

Carefusion LTV 1150 Home Care Ventilator
Carefusion LTV 1150 Home Care Ventilator
Carefusion LTV 1150 Home Care Ventilator
The Carefusion LTV 1150 Ventilator combines high-level patient care with clear, easy operation for the caregiver. The LTV 1150 ventilator offers easy and secure solutions for travel, reducing the need the for any changes in patient care, or caregiver training to move smoothly through both the interruptions and routines of daily life.
The compact shape of the LTV 1150 ventilator allows unprecedented portability and convenience in a home care ventilator. Use the LTV 1150 ventilator on a stand, in a backpack or in a custom carrier. The SprintPack dual battery system provides up to 5 hours of battery power when fully charged. In addition, the LTV 1150 ventilator has an internal battery for emergency back-up, providing an extra layer of security.
Versatility
The compact shape of the LTV 1150 ventilator allows unprecedented portability and convenience in a home care ventilator. The LTV ventilator may be used on a stand, in a backpack or in a custom carrier. It can also be mounted on a wall, the frame of a bed.
Comfort
The LTV 1150 ventilator with the SprintPack Lithium Ion Power System allows individuals to travel with comfort and confidence. The SprintPack dual battery system provides up to 5 hours of battery power when fully charged. In addition, the LTV 1150 ventilator has an internal battery for emergency back-up, providing an extra layer of security.
Confidence, Versatility And Comfort
The LTV 1150 ventilator offers many ventilation modes with wide parameters for those modes. Unlike any other home care ventilator on the market today, the LTV 1150 ventilator allows highly customizable settings for increased patient success through periods of stability or acceleration of their respiratory conditions.
- Breath types: Volume and Pressure Control, Pressure Support and Spontaneous
- Ventilation modes: Control, Assist/Control, SIMV/CPAP and Noninvasive
Features
- New
- Lightweight, compact design is ideal for home care, EMS and medical transportation
- Internal piston-driven compressor in the LTV 1000 ventilator eliminates the need for a high-pressure air source
- Comprehensive alarm options
- Internal oxygen blending for FiO2 control with high or low pressure oxygen sources
- Variable Alarms
Specifications
- Weight: 14.5 lbs
- Dimensions: 1.5″ H x 13.5″ W x 3.25″ D
- Includes AC Adapter
Specifications
Variable Alarms
- Apnea Interval: 10-60 seconds
- High Pressure Limit: 5 to 100 cmH20
- Low Peak Pressure: Off, 1 to 60 cmH20
- Low Minute Volume: Off, 0.1 to 99 liters
- High PEEP: Off, 3 to 20 cmH20 above set PEEP
- Low PEEP: Off, -3 to -20 cmH20 below set PEEP
- High Rate: Off, 5 to 80 BPM
- Alarm Volume: 60 to 85 dBA
Controls
- Ventilation modes: Control, Assist/Control, SIMV/CPAP
- and NPPV
- Breath types: VC, PC, PS and Spontaneous
- Breath rate: 0-80 bpm
- Tidal volume: 50 to 2000 mL
- Inspiratory time: 0.3 to 9.9 sec
- PC/PS/Spontaneous flow: 160 lpm
- Pressure control: 1 to 99 cmH2O
- Pressure support: 1 to 60 cmH2O
- Sensitivity: Off, 1 to 9 LPM
- PEEP/CPAP: 1 to 20 cmH2O
- Insp./Exp. hold: 6 seconds maximum
- Control lock: Easy or hard unlock options
Monitors And Indicators
- Peak inspiratory pressure: 0 to 120 cmH2O
- Mean airway pressure: 0 to 99 cmH2O
- PEEP: 0 to 99 cmH2O
- Breath Rate: 0-251 bpm
- Airway Pressure Display: -10 to 108 cmH2O
- Exhaled Tidal Volume: 0 to 4,000 mL
- Exhaled Minute Volume: 0 to 99.9 mL
- I:E Ratio: 99:1 to 1:99, measured
- Calculated Peak Flow: 10 to 100 LPM
- AutoPEEP: 0 to 100 cmH2O
- Static Compliance: 1 to 999 mL/cmH2O
- Patient Effort: Green
Fixed Alarms
- Disconnect/sense
- External power, low and lost
- Internal battery, low and empty
- Ventilator inoperative
Extended Features
- Spontaneous breathing trial (SBT)
- Ventilator presets (on/off)
- Variable rise time
- Variable flow termination
- Variable time termination
- Pressure control flow termination
- Leak compensation
- Apnea interval
Pneumatic Specifications
- Low pressure O2 source: < 80 LPM, < 10 PSIG
Power Indicators
- External power: Green and amber LEDs
- Battery charge status: Green, amber and red LEDs
- Battery level: Green, amber and red LEDs
