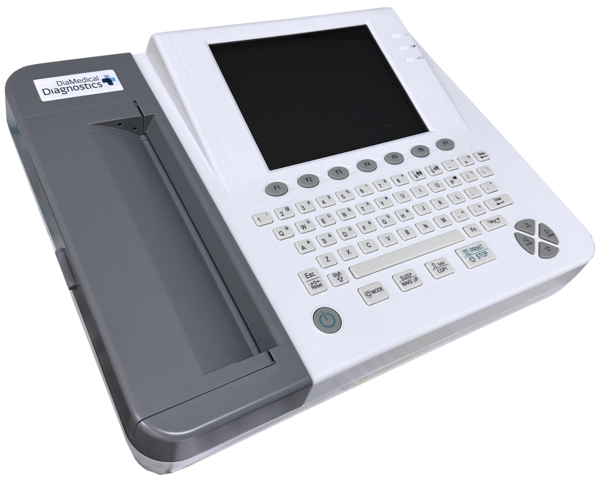

DiaMedical Infinity 1200 ECG Machine

(0) No Reviews yet
SKU: DG180009
$3,204.00

Vendor Direct: Longer Lead Times May Apply

DiaMedical Infinity 1200 ECG Machine



The DiaMedical Infinity 1200 ECG machine offers accurate clinical performance and fast operations at an affordable price.  The comprehensive Alphanumeric keyboard is user-friendly with practical one-touch operation and shortcuts for age and gender. The 8″ LCD display enables optimal examination of results and WiFi capability to transmit data.


User-Friendly Design

  • Alphanumeric Keyboard
  • One-touch operation
  • Built-In WiFi
  • 8″ LCD Display
  • Rechargeable Li-on Battery
  • Built-in Thermal Printer


Freeze & Review 120 Second Real-Time ECG Waveforms

  • Extend printing once an arrhythmia is detected
  • Automatic measurements and interpretation tested by the CSE/AHA/MIT database
  • Internal memory of 100 ECGS with an onboard PDF creator
  • Easily create reports to drag and drop into an EMR


Data Management

  • Large internal memory holds 100 EKGs and can be enlarged by USB flash disk
  • Built-in data management with reports review
  • On-board PDF creator making file transfer simple and seamless
  • PDF, SCP. FDA-XML and DICOM data export options
  • Bi-directional communication with SE-1515 Data Management System


Exceptional Clinical Performance

  • Weak signal detection with 24 bits A/D converter technology
  • Built-in high resolution thermal printer with extended printing
  • Automatic measurements and interpretation tested by CSE/AHA/MIT database
  • Comprehensive filters & anti-noise technology


Warranty

  • 2 Year on Main Unit
  • 1 Year on Accessories


ECG

  • Input Circuit: Defibrillation protection
  • Lead: Standard 12 leads
  • A/D Resolution:24 bits
  • Time Constant: >3.2s
  • Frequency Response: 0.05Hz ~ 150Hz (-3dB)
  • Sensitivity: 2.5, 5, 10, 20, 10/5, AGC (mm/mV)
  • Working Mode: Auto/Manual/Rhythm/R-R/OFF
  • Rhythm: Single channel or three channels selectable
  • Communication Interface: Ethernet, RS232, USB


Power

  • Input Impedance: >50MΩ (10Hz)
  • Input Circuit Current: <1.01µA
  • Input Voltage Range: +5mVpp
  • Calibration Voltage:  1mV+2%
  • DC Offset Voltage: +600mV
  • Power Supply: AC –  100V-240V, 50/60Hz
  • Battery: Built-in rechargeable Li-ion battery For 300 copies ECG printing


Filter

  • Noise: <12.5µVp-p
  • Filter: AC Filter: On/Off
  • – DFT Filter: 0.5Hz/0.15Hz/0.25Hz/0.32Hz/0.5Hz/0.67Hz
  • – EMG Filter: 25Hz/35Hz/45Hz/OFF
  • – Lowpass Filter: 150Hz/100Hz/75Hz
  • CMRR: >115dB


Printer

  • Printer: Thermal printer/External printer
  • Record Paper: Roll and Z-fold
  • Paper Width: 216mm, 210mm
  • Record Speed: 5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 25mm/s, 50mm/s (+3%)


Dimensions

  • Dimensions: 16.5″ L x 13.0″ W x 4.1″ H
  • Weight: 11 lbs (5 kg)
  • Display: 800 x 600 dots multicolor LCD Screen
  • Brand New Infinity 1200 ECG Machine from DiaMedical Diagnostics features an alphanumeric keyboard with 1-touch operation, 8″ LCD display, built-in WiFi and an integrated thermal printer
  • Automatic measurements and interpretation tested by the CSE/AHA/MIT database
  • Internal memory holds 100 EKGs and can be enlarged by USB flash disk
  • Includes 2 year manufacturer warranty for device and 1 year for accessories

Product Highlights

  • Brand New Infinity 1200 ECG Machine from DiaMedical Diagnostics features an alphanumeric keyboard with 1-touch operation, 8″ LCD display, built-in WiFi and an integrated thermal printer
  • Automatic measurements and interpretation tested by the CSE/AHA/MIT database
  • Internal memory holds 100 EKGs and can be enlarged by USB flash disk
  • Includes 2 year manufacturer warranty for device and 1 year for accessories
