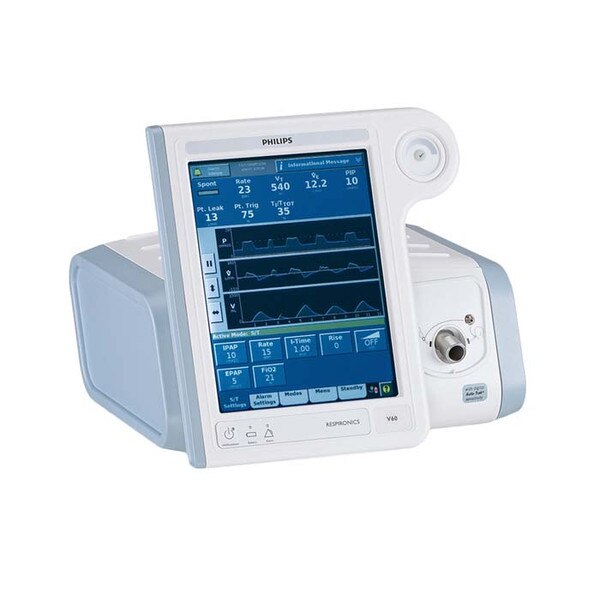

Philips Respironics V60 Ventilator
Philips Respironics V60 Ventilator
Philips Respironics V60 Ventilator
The Philips Respironics V60 Ventilator provides invasive and non-invasive ventilation for spontaneously breathing adult and pediatric patients.
Designed to include pediatric use and equipped with several modes, the V60 allows you to meet the specific needs of your patients. The high-resolution touchscreen makes operation easy and facilitates waveform interpretation. The internal 6-hour battery enables intra-hospital transport. The internal air blower eliminates need for an air compressor.
Auto-Trak Technology For Advanced NIV
Auto-Trak technology is designed to address the specific challenges of noninvasive ventilation. By providing auto-adaptive leak compensation, inspiratory triggering, and expiratory cycling, Auto-Trak delivers optimal synchrony in the face of dynamic leak and changing patient demand. Hospital modes and options include: AVAPS, PCV, CPAP with C-Flex, PPV and Auto-Trak Plus.
Automatic Mask Calibration
V60’s pre-defined settings for Philips Respironics hospital masks help you save time. You select the setting, and the V60 automatically calibrates flow characteristics for better monitoring and therapy.
Features
- New
- ICU-grade NIV performance with enhanced safety and monitoring
- Treatment for a wide range of clinical severities in pediatric and adult patients
- Internal air blower eliminates need for an air compressor
- Advanced NIV with Auto-Trak: Auto-adaptive leak compensation, inspiratory triggering & expiratory cycling
- Communication Ports: RS232, Serial, Remote Alarm
Ventilation Modes
- Continuous positive airway pressure (CPAP)
- Spontaneous with timed backup (S/T)
- Pressure control ventilation (PCV)
- Average volume assured pressure support (AVAPS)
Specifications
- Breath Phase/Trigger Indicators: Spontaneous, Timed, Exhale
- Triggering and Cycling: Auto-Adaptive Auto-Trak
- AVAPS Target Tidal Volume: 200 – 2,000 mL
- Tidal Volume Range: 0 – 3,500 mL
- Oxygen Inlet Pressure Range: 276 – 600kPa/40 – 87psig
- Dimensions: 13.3″ H x 15.5″ W x 16.5″ D
- Weight: 25.7 lbs without optional battery
- One (1) Year Warranty
Specifications
Patient Types
- Adult
- Pediatric ≥20 kg
Ventilation Modes
- Continuous positive airway pressure (CPAP)
- Spontaneous with timed backup (S/T)
- Pressure control ventilation (PCV)
- Average volume assured pressure support (AVAPS)
Settings
- C-Flex: Off, 1 – 3
- CPAP: 4 – 25 cmH2O
- CPAP, IPAP & EPAP: 4 – 25 cmH2O
- Inspiratory time: 0.30 – 3.00 sec
- Max P (AVAPS maximum IPAP): 6 – 40 cmH2O
- Min P (AVAPS minimum IPAP): 5 – 30 cmH2O
- FiO2: 21 – 100%
- Ramp Time: Off, 5 – 45 min
- Rise Time: 1 – 5
- Triggering & Cycling: Auto-adaptive (Auto-Trak)
- AVAPS Target Tidal Volume: 200 – 2,000 ml
Monitored Parameters
- Breath Phase/Trigger Indicator: Spontaneous, Timed, Exhale
- PIP: 0 – 50 cmH2O
- Patient/Total Leak: 0 – 200 LPM
- Patient Trigger: 0 – 100%
- Respiratory Rate: 0 – 90 bpm
- Ti/Ttot: 0 – 91%
- Minute Volume: 0 – 99.0 LPM
- Tidal Volume: 0 – 3,500 mL
General
- Oxygen Inlet Pressure Range: 276 – 600 kPa/40 – 87psig
- Dimensions: 13.3″ H x 15.5″ W x 16.5″ D
- Weight: 25.7 lbs without optional battery
