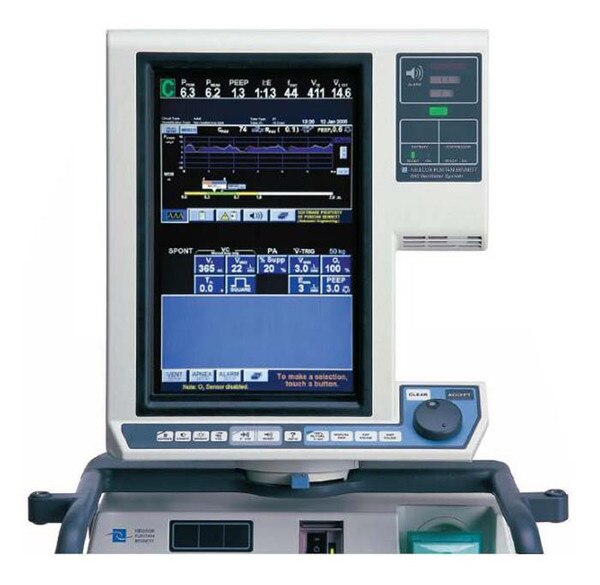

Puritan Bennett 840 Ventilator

(0) No Reviews yet

Puritan Bennett 840 Ventilator

SKU: RS026503
$9,995.00

Vendor Direct: Longer Lead Times May Apply

Back

Puritan Bennett 840 Ventilator

The Puritan Bennett 840 Ventilator is responsive to patients and offers superior comfort, delivering sensitive, precise breaths to critically ill neonatal through adult patients. For use in providing neonate through adult patients with ventilatory support in the hospital environment.

The 840 Ventilator is easy to use, fast, and designed for patient comfort. It works with patients neonate through adult as well as with difficult critical care cases. The 840 Ventilator features PAV*+ software, a breath type that better manages a patient’s work of breathing and supports more natural breathing compared to conventional mechanical ventilation. With the addition of optional advanced technology upgrades, this ventilator can meet the specific needs of practically every patient type you care for—from neonatal patients weighing as little as 300 grams to adult patients weighing as much as 150 kg.

Features

  • Expertly Reconditioned
  • Technological Sophistication – With its high-performance pneumatics, dual-microprocessor electronics and DualView touchscreens.
  • Upgradeable – The 840 Ventilator can be upgraded and customized with various software options to meet your clinical needs, today and in the future.
  • Enhanced noninvasive ventilation (NIV) that improves comfort for patients and performance for clinicians. Designed for use on patients with a stable respiratory drive.
  • Seamless Communications – The 840 Ventilator supports communication with all major patient monitoring and hospital information systems. It provides seamless electronic data transfer into a patient’s medical record.
  • Low Cost of Ownership – The 840 Ventilator is designed with rugged and reliable components. Its modular design provides easy serviceability.
  • One (1) Year Warranty

Additional Information

  • The 840 Ventilator includes a breath delivery unit (BDU) that controls ventilation, and a graphic user interface (GUI) that monitors and displays ventilator and monitored data
  • The ventilator supplies mandatory (pressure or volume controlled) or spontaneous breaths (inspiratory flows of up to 200 L/min, with or without pressure support) with a preset oxygen concentration.
  • Breaths can be pressure- or flow-triggered using Flow-by.
  • Touch screens display monitored data separately from ventilator settings for easy assessment of the patient’s condition.
  • The optional 806 Compressor provides compressed air to the breath delivery unit (BDU) and can be used in place of wall or cylinder air.
  • The standard 802 Backup Power Source (BPS) provides DC power to the BDU and GUI in the event that ac power is lost
  • Modes: Assist/Control, synchronous intermittent mandatory ventilation, or spontaneous
Back

Specifications

Dimensions

  • BDU 13” x 18” x 10” (330 mm x 457 mm x 254 mm)
  • GUI 18.1” x 15.5” x 6.7” (460 mm x 394 mm x 170 mm)
  • BPS 3.25” x 9.6” x 10” (83 mm x 244 mm x 254 mm)
  • Cart 39.3” x 22.9” x 23.7” (998 mm x 582 mm x 602 mm)
  • Compressor 16.4” x 18” x 14.25” (417 mm x 458 mm x 362 mm)


Weight

  • Breath Delivery Unit (BDU) 40.1 lb (18.2 kg)
  • Graphic User Interface (GUI) 12.6 lb (5.7kg)
  • Back up Power Source (BPS) 14.6 lb (6.6 kg)
  • Cart 34.2 lb (15.5 kg)
  • Compressor 55 lb (25 kg)


Monitored Data

  • Breath type, delivered O2, end expiratory pressure, end-inspiratory pressure, exhaled minute volume, exhaled tidal volume, I:E ratio, maximum circuit pressure, mean circuit pressure, spontaneous minute volume, total respiratory rate, rapid shallow breathing index, spontaneous respiratory time.


General

  • Modes: Assist/Control, synchronous intermittent mandatory ventilation, or spontaneous
  • Respiratory Rates: 1.0 to 100/min
  • Inspiratory Pressure: 5 to 90 cm H2O
  • Inspiratory Time: 0.2 to 8.0 seconds
  • I:E Ratio: ≤ 1:299-4.00:1
  • Expiratory Time: Te ≥ 0.2 second
  • PEEP: 0 to 45 cm H2O
  • Apnea Insp. Pressure: 5 to 90 cm H2O
  • Apnea Insp. Time: 0.2 to 8.0 seconds
  • Apnea Interva:l 10 to 60 seconds
  • Apnea Resp. Rate: 2.0 to 40/min
  • Apnea I:E Ratio: ≤ 1.00:1
  • Apnea Exp. Time: ≥ 0.2 second


Alarm Limits

  • High Circuit Pressure: 7 to 100 cm H2O
  • High Exhaled Min. Vol: 0.1 to 99.9L or OFF
  • High Exhaled Tidal Vol: 50 to 3000mL or OFF
  • High Respiratory Rate: 10 to 110/min or OFF
  • Low Exhaled MandatoryTidal Vol: 5 to 2500 mL or OFF
  • Low Exhaled Min. Vol: 0.01 to 60.0L
  • Low Exhaled Spontaneous Tidal Vol: 5 to 2500 mL or OFF
Back
  • Responsive to patients and offers superior comfort, delivering sensitive, precise breaths to critically ill neonatal through adult patients
  • Features PAV*+ software, a breath type that better manages a patient’s work of breathing and supports more natural breathing compared to conventional mechanical ventilation
  • Pptional advanced technology upgrades

Product Highlights

  • Responsive to patients and offers superior comfort, delivering sensitive, precise breaths to critically ill neonatal through adult patients
  • Features PAV*+ software, a breath type that better manages a patient’s work of breathing and supports more natural breathing compared to conventional mechanical ventilation
  • Pptional advanced technology upgrades
Back
