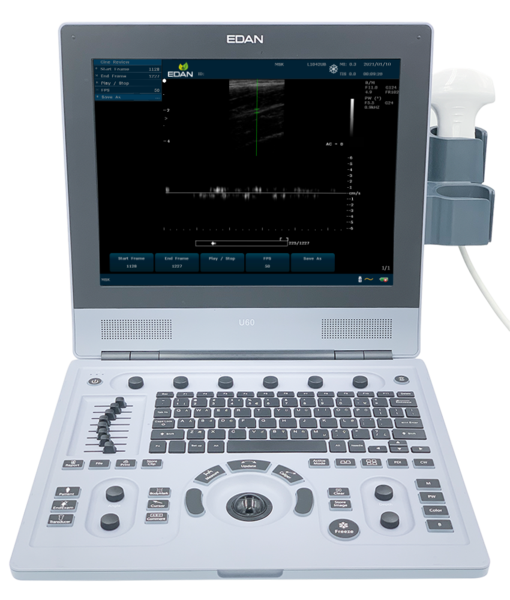

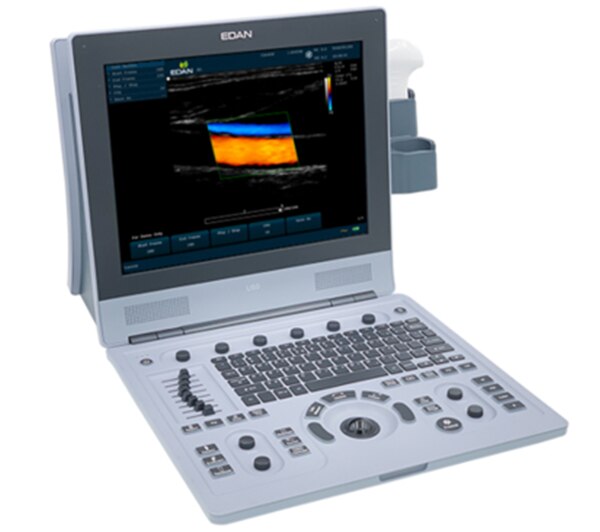

EDAN U60 Color Doppler Ultrasound
EDAN U60 Color Doppler Ultrasound
EDAN U60 Color Doppler Ultrasound
The U60 empowers users with innovative technologies to help optimize daily workflows. As one of the most capable diagnostic ultrasound machines on the market, the Edan U60 supports comprehensive clinical applications and user-friendly operation.
Features:
- Full Keyboard
- USB & DICOM Export
- Color Ultrasound
- Two (2) Transducer Ports
- Compact Design: Compact, lightweight design facilitates mobility, Integrated battery enables operation anywhere, Large 15” monitor for easy viewing
- Comprehensive Clinical Applications: Full set of transducers available to support all applications
- Advanced Imaging Technologies: Tissue Harmonic Imaging, Spatial Compounding Imaging, Speckle Reduction Imaging
- User-Friendly Operation: Backlit, easy-to-use control panel, Customizable user defined controls, Large capacity data storage
Includes:
- User manual
- Battery
- Ultrasound gel (250g)
- Luxury travel bag
- Power cord (USA standard)
- Quick guide
- Transducer holder
- Ground cable
Does not Include Transducer
Probes/Transducers Compatible with U60:
- Convex array transducer C5-2b
- Micro-convex array transducer C612UB
- Micro-convex array transducer C6152UB
- Transvaginal array transducer E612UB
- Linear array transducer L1042UB
- Linear array transducer L15-7b
- Linear array transducer L742UB
- Phase array transducer P5-1b
Dimension and weight:
- Height: 35cm
- Width: 37cm
- Depth: 22cm
- Weight: < 8.5kg (without probe and battery)
Monitor:
- 15 TFT-LCD monitor 15 TFT-LCD
- Resolution: 1024 x 768
- Imaging field size: 640*512
- Video out size: 800 * 600
- Capture size: BMP, JPG, AVI, DCM 1024 * 768; FRM, CIN 640 * 512
- View angle: Up 85, Down 85, Left 85, Right 85
- Brightness and Color Temp adjustable
- Angle adjustable: 0, 15, 3001530
- Built-in stereo speaker
Electrical Power:
- Voltage: 110V-240VAC
- Frequency: 50/60 Hz
- Power: 97.4w
Battery:
- Rechargeable lithium ion battery
- Capacity: 5000mAh
- Removable
- Approximately 50 minutes of typical ultrasound exam use 50min
- Max charging time: 8 hours
- Compact, lightweight design facilitates mobility
- Integrated battery enables operation anywhere
- Large 15” monitor for easy viewing
- Color Ultrasound
- Two (2) Transducer Ports
Product Highlights
- Compact, lightweight design facilitates mobility
- Integrated battery enables operation anywhere
- Large 15” monitor for easy viewing
- Color Ultrasound
- Two (2) Transducer Ports
