Smiths Medical Pneupac VR1 Ventilator

(0) No Reviews yet
SKU: DM305330
$3,074.95 to $3,474.95

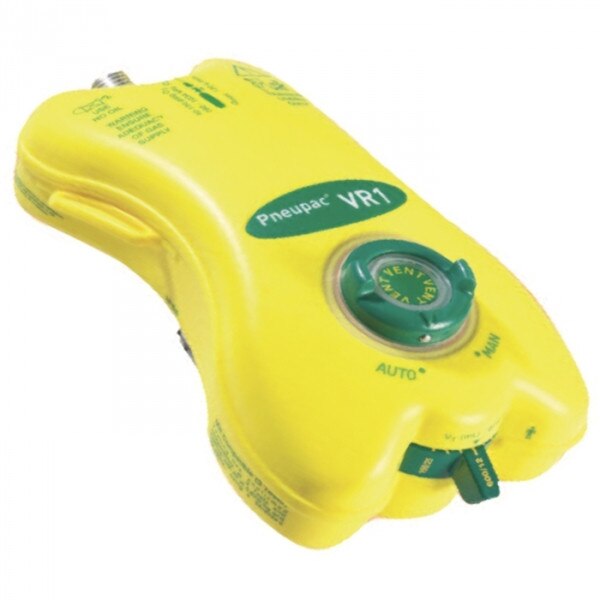

Smiths Medical Pneupac VR1 Ventilator


The Smiths Medical Pneupac VR1 Ventilator is designed for caregivers wherever breathing failure emergencies occur.  They are ideal for hospitals, industrial or commercial settings, transport situations, or remote locations. The Pneupac VR1’s simplicity, portability, and safety make it the ideal choice for emergency resuscitation.

A single control for setting the frequency and tidal volume, including a clickstop setting at the recommended adult position, enables rapid set-up in demanding circumstances. Auto/manual controls, a patient demand system, MR compatibility, and other features provide the means to manage respiratory emergencies.


  • Small, lightweight design has all the advantages of portability, without compromising key clinical features
  • Single control for tidal volume/ frequency control enables quick set-up for patients’ requirements.
  • Auto/manual control allows the operator to choose automatic mode or to provide ventilation manually.
  • Integrated patient demand system allows synchronized interaction with the patient’s own breathing efforts
  • Gas powered unit eliminates the need for electricity
  • Linked manual controls allow the ventilator to be used in a variety of chest compression/ventilation options in cardiac life support.
  • Patient valve/input hose is extremely flexible and easily removed for cleaning
  • MR compatibility provides maximum flexibility for transport and use within the hospital.
  • Optional Air Mix Switch

Materials Included

  • Pneupac VR1 Ventilator
  • Flotec MRI regulator with a DISS connection and liter flow
  • Oxygen Green Hose
  • Pair Velcro Hand Straps
  • Disposable Patient Circuit Kit with Exhaust Collector and PEEP Valve
  • User Manual
  • 1 Year Warranty


Technical Specifications

  • Principle of Operation
    • Gas powered, hand-held control unit with patient valve including automatic and manual modes with demand breathing
  • Manual Mode
    • Preset breaths, singly or in a controlled breathing pattern may be selected by use of a push-button or omni-directional lever
  • Automatic Mode
    • The ventilatory resuscitator cycles in accordance with the setting of a single control that changes the tidal volume and frequency dependently with a constant I:E ratio of 1:2
  • Patient Type
    • Patients above 10kg needing resuscitation/venitilatory support
  • Demand: Included
  • Control
    • Single, calibrated, tidal volume/frequency control gives simultaneous and inter-dependent adjustment of tidal volume and frequency
  • Tidal Volume and Frequency
    • 400 mL/15 bpm
    • 500 mL/12 bpm
    • 600 mL/10 bpm
    • 600 mL/10 bpm (detent)
    • 800 mL/10 bpm
  • Flow Range
    • 11-32 L/min
  • Pressure Relief with Pneumatic Alarm
    • 40 cm H2O standard
  • Dimensions (Including patient valve)
    • Length: 6.69 inches (170 mm)
    • Width: 3.74 inches (95 mm)
    • Height: 3.94 inches (100 mm)
  • Weight: 14.82 ounces (420 grams)
  • Weight: 8.3 lbs (3.75 kg)
  • Standards: EN60601-1, EN794-3: 1999
