Suction Regulator – Analog, USA

(0) No Reviews yet
SKU: DM429365
$154.95 to $335.00
$154.95 to $335.00

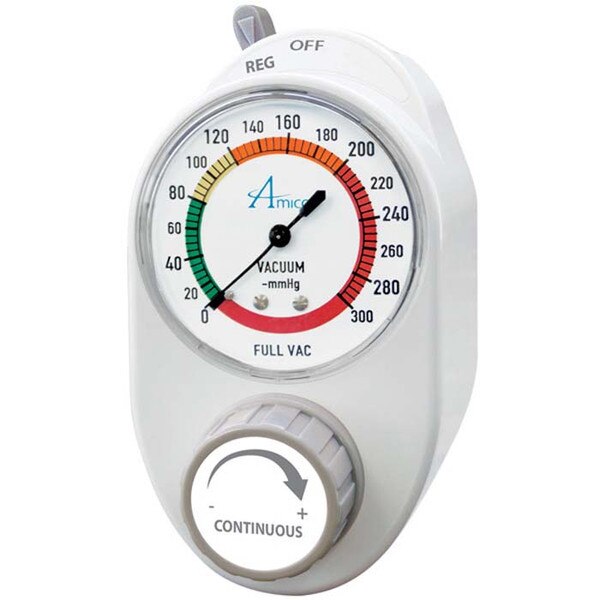

SUCTION REGULATOR – ANALOG, USA

We offer a complete line of Suction Regulators including continuous, intermittent, neonatla and pediatric. Our standard white, analog regulator will use a 1/8″ NFPT connection with tubing nipple to patient but has the option of an Ohmeda, Chemetron, DISS Nut or DISS Handtight connection. Additional connections are available upon request. If connection is unknown, please contact a rep for help identifying the right connection.

  • Intermittent Flowrate: Adult: 8 LPM , Pediatric: 8 LPM, Neonatal: 8 LPM
  • Continuous Flowrate: Adult: 65 LPM, Pediatric: 40 LPM, Neonatal: 40 LPM
  • 16 seconds on/ 8 seconds off
  • Timing can be adjusted on the back of the unit with access to ON and OFF needle valves, starts in the OFF position
  • Dimensions: 5.94” H x 2.93” W x 4.04” D (15.09 x 7.44 x 10.26 cm)
  • Weight: Continuous: 0.65 lbs (0.29 kg) Intermittent: 0.8 lbs (0.36 kg)


  • 3- Mode Continuous Analog Suction Regulator from Amico features off, regular, and full vacuum capability
  • Available with NFPT, Ohmeda, Chemetron, DISS Nut or DISS Handtight connections
  • Maximum 65 LPM continuous flowrate
  • Compact unit is only 6" H x 3" W x 4" D

Product Highlights

  • 3- Mode Continuous Analog Suction Regulator from Amico features off, regular, and full vacuum capability
  • Available with NFPT, Ohmeda, Chemetron, DISS Nut or DISS Handtight connections
  • Maximum 65 LPM continuous flowrate
  • Compact unit is only 6" H x 3" W x 4" D
