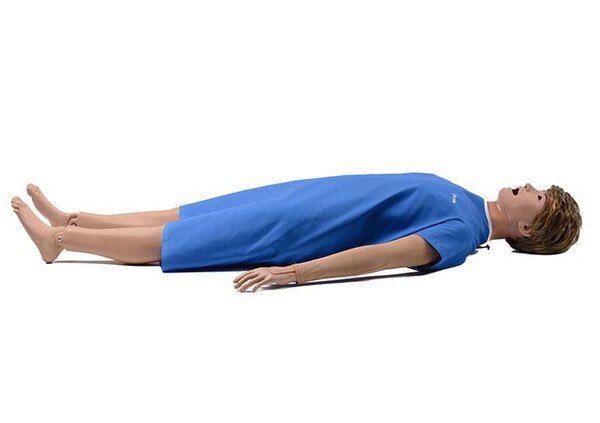

Elevate Healthcare Ares Emergency Care Manikin

Ares is Elevate Healthcare's newest mid-fidelity manikin designed for life-saving simulation experiences in the prehospital and emergency care settings. This manikin is ideal for reaching educational goals involving both Advanced Life Support (ALS) and Advanced Cardiac Life Support (ACLS) requirements.

Lightweight, durable, and portable, Ares provides a variety of clinical features vital for life-like and repeatable emergency scenarios.

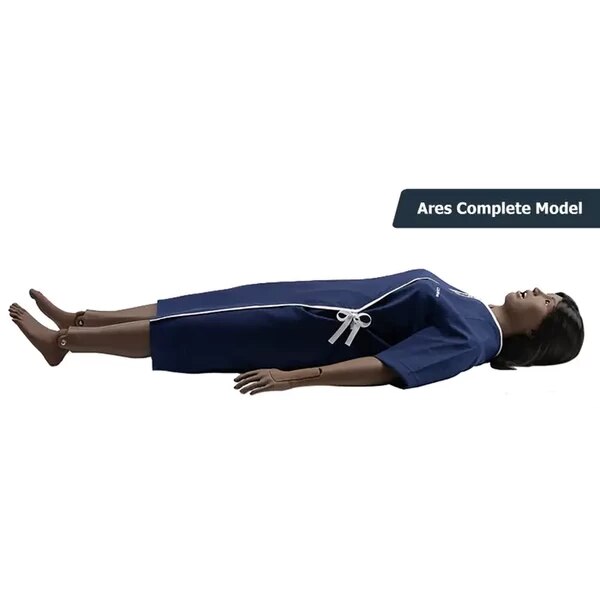

The Complete configuration includes all features found in the Ares Advanced configuration, plus the SymDefib external defibrillation box.

Ares Complete Manikin Key Features:

Neuro

• SymEyes

Articulation

• Realistic Articulation
• Range of motion in hips, knees, ankles, shoulders
• Cervical motion for practice of patient stabilization

Airway

• Bag-valve-mask (BVM) ventilation
• Orotracheal and nasotracheal intubation
• Placement of various airway adjuncts
• Endotracheal tube intubation
• Transtracheal jet ventilation
• Needle and surgical cricothyrotomy
• Retrograde and fiber-optic intubation
• Tracheostomy
• Right main stem intubation with detection
• Stomach distention with esophageal intubation
• Laryngospasm (manual)

Breathing

• Spontaneous breathing
• Bilateral and unilateral chest rise and fall
• Lung auscultation sites on anterior chest
• Upper airway sounds
• Bilateral needle decompression

Cardiac

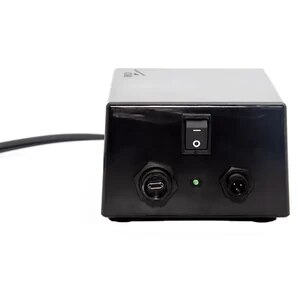

• SymDefib external defibrillation box
• 4-Lead ECG monitoring with real equipment
• 12-Lead dynamic ECG display

Circulation

• Unilateral blood pressure measurement by auscultation and palpation
• Bilateral carotid and femoral pulses
• Unilateral radial and brachial pulses
• Variable pulse strength

CPR

• Compliant with 2015 AHA guidelines and ERC guidelines
• CPR compressions generate palpable pulse, blood pressure, waveform, and ECG artifacts
• Realistic chest compression depth and resistance
• Software metrics detects hand placement, rate and depth of compressions, recoil, ventilations and ventilation: compression ratio

IM Medication Administration

• (4) Intramuscular injection sites

Urinary

• Urinary catheterization without fluids
• Interchangeable genitalia

Vascular Access

• Unilateral IV cannulation at antecubital and dorsum of hand
• Blood draw with vacuum sealed blood collection system
• Unilateral (humoral) IO access

Sounds

• Auscultation of normal and abnormal heart, lung and bowel sounds with the StethoSym technology utilizing radiofrequency identification (RFID) tags
• Prerecorded speech and vocal sounds
• Bidirectional audio communication between manikin and operator

Manikin Specifications

• Dimensions: 64" H × 20.5" W × 10" D
• Weight: 50 lb.
• AC Input: AC 115-230VAC, 50/60 Hz
• Internal batteries (included): 15V Lithium ion, rechargeable
• Runtime: Approximately 4 hours

Standard Equipment

• Instructor tablet computer
• Elevate Healthcare Maestro software suite - Instructor-driven (manual mode) only
• Elevate Healthcare Maestro Standalone license for Windows
• License for Ares Learning Experience, a mobile app with educational content focused on the six Simulated Clinical Experience (SCEs) including: Cardiopulmonary Arrest, Closed Head Injury and Pneumothorax, Heroin Overdose, Inferior-Posterior Myocardial Infarction, Sepsis with Hypotension, Stroke
• Pre- and post-test questions
• Study cards on pathophysiology, assessment, management, and clinical pearls
• Single-year Elevate Healthcare Express Assurance warranty
