SimLabSolutions 36″ Discover R Series Headwall Package

Available in a variety of value-added packages with simple installation and maintenance, Discover Headwalls serve as a cornerstone for any simulation or skills lab. The 36″ Discover R Series Headwall is wall mounted and is piped with a rear air connection for use with a centralized air compressor.

Choose from Classic, Advanced, or Advanced Plus packages to match your training needs and budget.

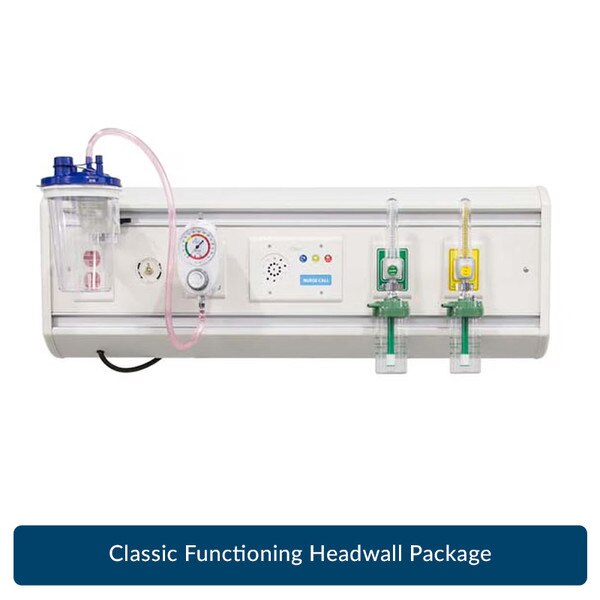

The Classic Functioning Headwall Package includes:

1.SimLabSolutions 36” Discover Headwall

Integrated Fixtures Include:

• Duplex electrical receptacle, red
• Vacuum slide
• Air, vacuum, and oxygen outlets
• Wall mounting strips (for wall-mount models)

Headwall Specifications:

• Ohmeda connections
• Horizontal: 36" L × 12.5" H × 4" D
• 8" Power cord
• 1-Year parts warranty

2.Complete Accessories Package

• Oxygen flowmeter
• Medical air flowmeter
• Vacuum regulator with tubing nipple “T”
• (2) Humidifiers
• (2) Nasal cannulas
• Suction tubing
• Preinstalled replica nurse call face plate (non-functional)
• Call button with cord

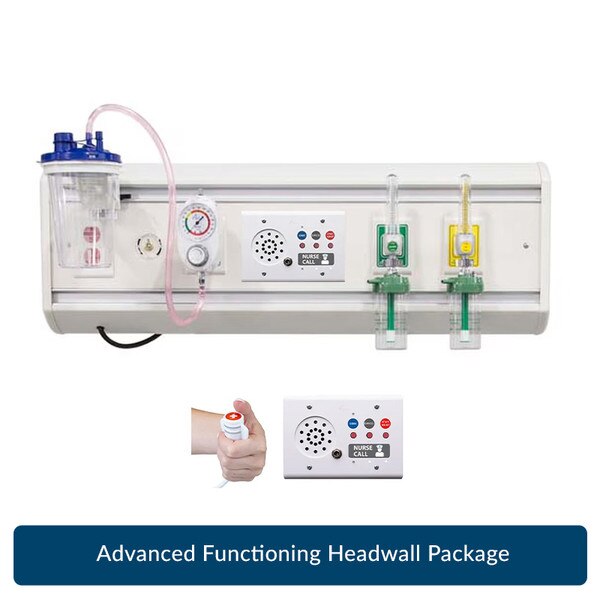

Advanced Functioning Headwall

Includes Classic Functioning Headwall Package, PLUS:

Nurse Call Functional Face Plate Package

Features:

• Pushbutton controls for standard nurse calls, Code Blue emergency calls, and call cancellation
• ¼" jack for call cord compatibility
• Nurse call button with cord
• Functional nurse call faceplate (must be paired with one Advanced Plus Package to function)

Functional Nurse Call Plate Specifications:

• 4.56" H × 6.5" W × 2" D
• Compatibility: 2.4 GHz Wi-Fi connection
• Windows® 10 or later

Ideal for:

This package is particularly well-suited for simulation and skills labs featuring multiple headwalls used to teach patient prioritization. One Advanced Plus Package is REQUIRED for functional Advanced Headwall Packages. The Advanced Plus Package includes the Call Operating System, which serves as the central control hub for all headwalls. The Advanced Package integrates seamlessly with the Call Operating System, ensuring full compatibility and operational efficiency across the entire setup.

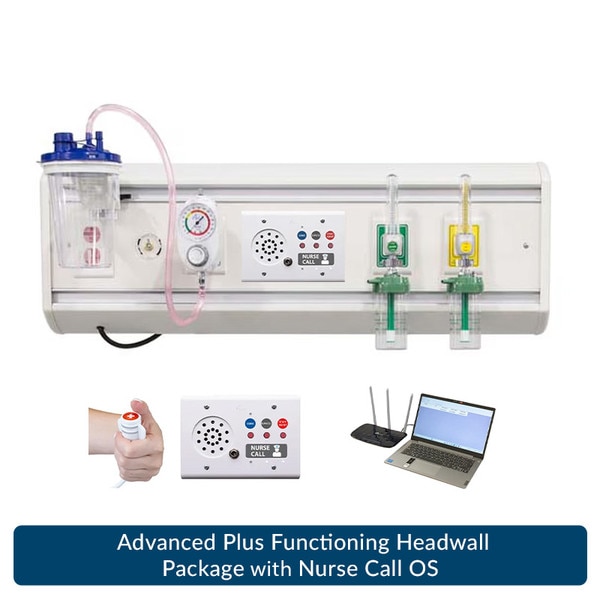

Advanced Plus Functioning Headwall w/ Nurse Call OS

Includes Advance Functioning Headwall Package, PLUS:

Call Operating System

The Call Operating System provides the functional foundation of a nurse call station in a simple, easy-to-use bundle. It’s a closed-loop system that does not require connection to the facility’s Wi-Fi. Simple connectivity via the included router and a Wi-Fi-enabled laptop enables wireless pushbutton calls from up to ten nurse call faceplates to a simulated nurse call station. Ideal for patient prioritization and curriculums looking to integrate nurse call into their training.

Features:

• One (1) Advanced Plus Functioning Headwall Package communicates with up to ten (10) nurse call face plate units on a wireless network
• Functions wirelessly over Wi-Fi network with included laptop computer and router
• Compatibility: 2.4 GHz Wi-Fi Connection

Includes:

• Windows® 10 laptop computer with Nurse Call operating software
• Wireless router
