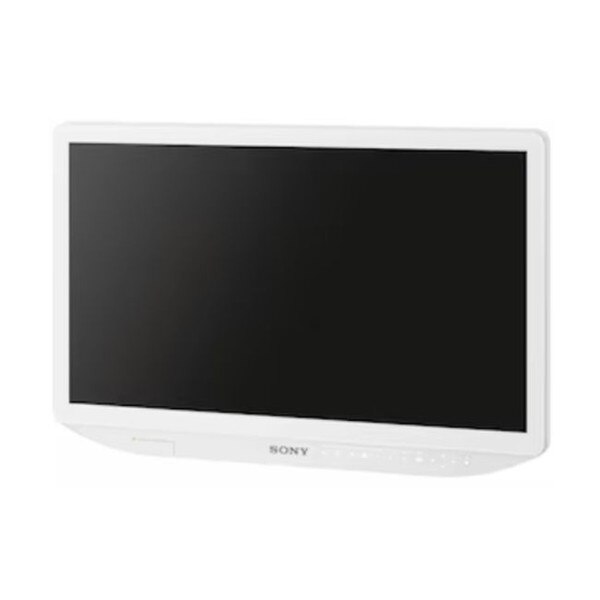

Sony LMD2110MD 21.5-inch Full HD 2D LCD Medical Monitor

SKU: LMD-2110MD
$1,496.25

Vendor Direct: Longer Lead Times May Apply

Back

Full HD resolution monitor complies with medical safety standards The LMD-2110MD monitor features a 21.5-inch LCD panel of full HD (1920 x 1080) resolution and 10-bit signal processing. Complying with medical safety standards and EMC standards, the monitor provides a crisp, sharp high-definition image. Input versatility The LMD-2110MD is equipped with an analog video input and output terminals as standard. It also features a HDMI input, which accepts HD signals up to 1080/60P. In addition, the monitor can input HD/SD-SDI signals using an optional input adapter.



  • Mutiple input interfaces: Composite, Y/C, RGB/YPBPR, HDMI (compatible with DVI) as standard
  • Optional input interface: SD/HD-SDI input x 1 with optional input adaptor BKM-341HS
  • Selectable color temperature settings
  • On screen display (OSD) for seven languages
  • Built-in green LED tally lamp to indentify when images are captured or recorded
  • Parallel remote control Interface
  • Vesa mounting standard compliance (100 mm spacing)

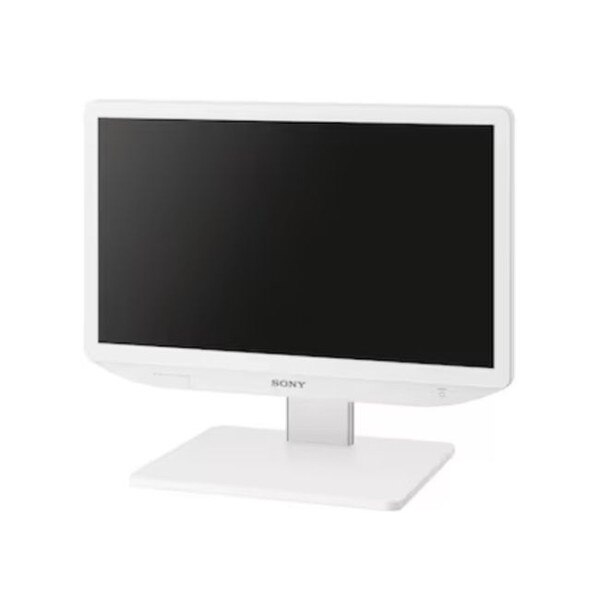

  • Built-in desktop stand with tilt function
  • Compliance with medical safety standard UL60601-1
Back

General

  • Dimensions (W x H x D) (with stand): 515 x 403 x 264 mm (20 3/8 x 15 7/8 x 10 1/2 inches)
  • Dimensions (W x H x D) (without stand): 515 x 355 x 86 mm (20 3/8 x 14 x 3 1/2 inches)
  • Mass: 8.6 kg (18 lb 15 oz)
  • Mass (without stand): 6.9 kg (14 lb 19 oz)
  • Operating humidity: 30% to 85% (no condensation)
  • Operating temperature: 0°C to 35°C (32°F to 95°F)
    Recommended: 20°C to 30°C (68°F to 86°F)
  • Operating, storage and transport pressure: 700 hPa to 1060 hPa
  • Power consumption: Maximum: approx. 60 W, 1.0 A to 0.5 A
  • Power requirements: AC 100 V to 240 V, 50/60 Hz
  • Storage and transport humidity: 0% to 90%
  • Storage and transport temperature: -20°C to +60°C (-4°F to +140°F)

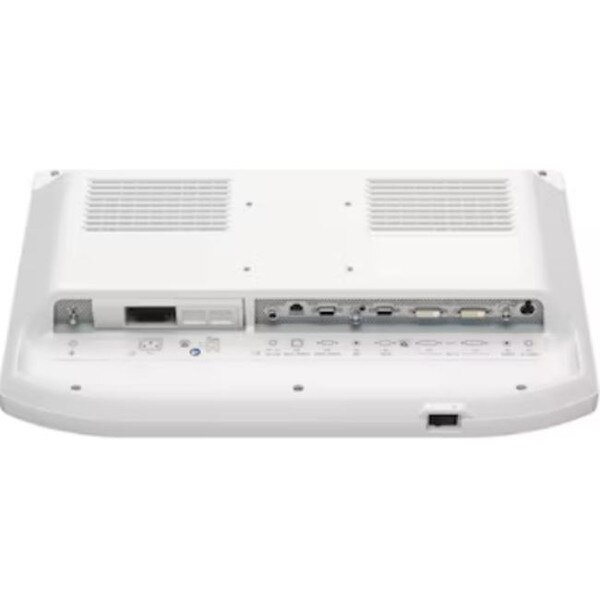

Input

  • Audio: Phono jack (x2), –5 dBu 47 kilohms or higher
    OPTIONAL AUDIO IN: Phono jack (x1), –5 dBu 47 kilohms or higher
  • Composite: BNC (x1), 1.0 Vp-p ±3 dB sync negative
  • External sync: BNC (x1)
    0.3 Vp-p to 4.0 Vp-p ±bipolarity ternary or negative polarity binary
  • HDMI: HDMI (x1)
  • Option in connector: D-sub 9-pin (x1), female
  • Parallel remote: Modular connector 8-pin (x1) (pin-assignable)
  • RGB, Component: BNC (x3)
    RGB: 0.7 Vp-p ±3 dB (Sync On Green, 0.3 Vp-p sync negative)
    Component: 0.7 Vp-p ±3 dB
    (75% chrominance standard color bar signal)
  • Y/C: Mini DIN 4-pin (x1)
    Y: 1.0 Vp-p ±3 dB sync negative,
    C: 0.286 Vp-p ±3 dB (NTSC burst signal level),
    0.3 Vp-p ±3 dB (PAL burst signal level)



Output

  • Audio monitor out: Phono jack (x2), loop-through
  • Composite: BNC (x1), loop-through, with 75 ohms automatic termination
  • External sync: BNC (x1), loop-through, with 75 ohms automatic termination
  • RGB, Component: BNC (x3), loop-through, with 75 ohms automatic termination
  • Speaker (built-in): 0.5 W (mono)
  • Y/C: Mini DIN 4-pin (x1), loop-through, with 75 ohms automatic termination



Picture Performance

  • Aspect: 16:9
  • Colors: Approx. 16.7 million colors
  • Effective picture size (H x W) (Diagonal): 477 x 268 mm (18 7/8 x 10 5/8 inches), 547 mm (21 5/8 inches)
  • Resolution: 1920 x 1080 pixels (Full HD)
  • Type: a-Si TFT Active Matrix LCD
  • Viewing angle (LCD panel specification): 170°/160° (typical) (horizontal/vertical contrast >10:1)



Supplied Accessories

  • AC plug holder (2):
  • AC power cord (1):
  • Before Using This Unit (1):
  • CD-ROM (including the Instructions for Use) (1):
  • Service Contact List (1):
Back
  • Cost-effective feature-rich performance
    The LMD-2110MD offers professional functionality in an economic package. Optimized for moving picture reproduction, it delivers accurate color rendition and greyscale thanks to its CRT-like gamma curve and 10-bit signal processing.
  • Full HD-resolution LCD panel
    The LMD-2110MD delivers outstandingly crisp, high-brightness and high-contrast widescreen HD images with a fast transient response.
  • Wide range of standard input interfaces
    The LMD-2110MD is equipped with a full range of analog SD inputs, including composite NTSC/PAL, Y/C (S-Video), 525i/625i component, and RGB. Also included is an HDMI input, which can accept HD digital signals up to 1080/50p and 60p. DVI signals can be input via the HDMI input connector using a conversion cable.
  • Optional HD-SDI interface
    The LMD-2110MD supports HD-SDI input with an optional BKM-341HS HD/SD-SDI input adaptor. This input versatility allows the LMD-2110MD monitor to flexibly connect to HD-SDI digital environments. The monitor can also handle SD-SDI input using an optional BKM-320D SD-SDI input adapter.
  • Safety listing and compliance
    The LMD-2110MD is UL60601-1-listed and complies with CSA C22.2 No.601-1 and EN 60601-1 safety standards and EMC standards, making it suitable for use in a wide range of professional medical applications.
  • Remote control
    The monitor allows external remote control via a programmable parallel remote interface.
  • VESA mounting
    The monitor can stand on a desktop or be mounted on the wall or ceiling with a 3.94 x 3.94-inch VESA arm mount.

Product Highlights

  • Cost-effective feature-rich performance
    The LMD-2110MD offers professional functionality in an economic package. Optimized for moving picture reproduction, it delivers accurate color rendition and greyscale thanks to its CRT-like gamma curve and 10-bit signal processing.
  • Full HD-resolution LCD panel
    The LMD-2110MD delivers outstandingly crisp, high-brightness and high-contrast widescreen HD images with a fast transient response.
  • Wide range of standard input interfaces
    The LMD-2110MD is equipped with a full range of analog SD inputs, including composite NTSC/PAL, Y/C (S-Video), 525i/625i component, and RGB. Also included is an HDMI input, which can accept HD digital signals up to 1080/50p and 60p. DVI signals can be input via the HDMI input connector using a conversion cable.
  • Optional HD-SDI interface
    The LMD-2110MD supports HD-SDI input with an optional BKM-341HS HD/SD-SDI input adaptor. This input versatility allows the LMD-2110MD monitor to flexibly connect to HD-SDI digital environments. The monitor can also handle SD-SDI input using an optional BKM-320D SD-SDI input adapter.
  • Safety listing and compliance
    The LMD-2110MD is UL60601-1-listed and complies with CSA C22.2 No.601-1 and EN 60601-1 safety standards and EMC standards, making it suitable for use in a wide range of professional medical applications.
  • Remote control
    The monitor allows external remote control via a programmable parallel remote interface.
  • VESA mounting
    The monitor can stand on a desktop or be mounted on the wall or ceiling with a 3.94 x 3.94-inch VESA arm mount.
